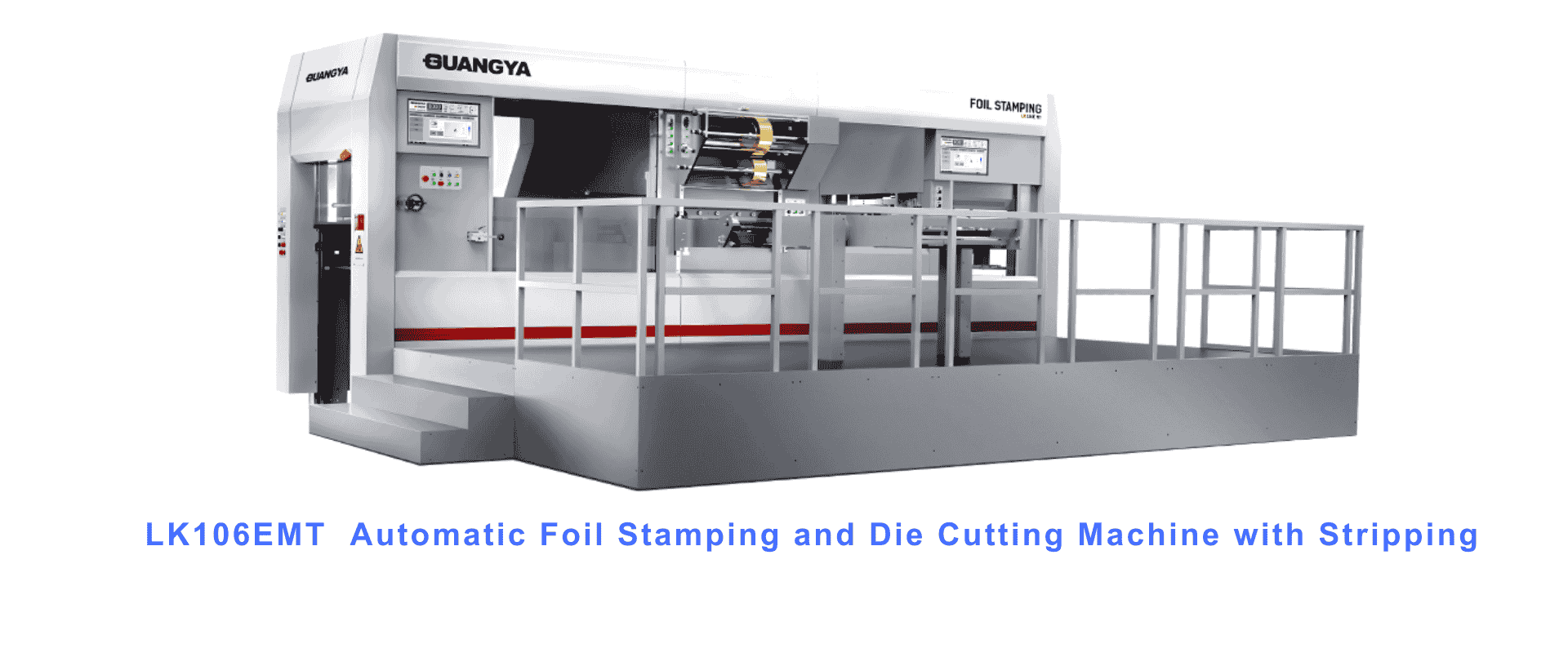

LK106EMT Automatic Foil Stamping and Die Cutting Machine with Stripping
1. Automatic pressure adjustment system by servo motor, higher precision and more convenient
2. Automatic decreasing pressure if no paper, extend mould service life
3. Non-stop sampling function, improve work efficiency
4. Remote information monitoring function, automatic foiling optimization function
5. Stamping data storage function
| Model | LK106EMT | ||
| Max. sheet size(mm) | 1060×760mm | Max. stamping speed(s/h) | 8000s/h |
| Min. sheet size(mm) | 400×340mm | Foil feeding shaft | 5 (3 in longitudinal, 2 in transversal) |
| Max. die cutting size(mm) | 1060×746mm | Zones individually heated | 12 (max to 200°C) |
| Max. stamping size(mm) | 1060×746mm | Max. delivery pile height | 1300mm |
| Gripper Margin(mm) | 8-17mm | Max. feeding pile height | 1400mm |
| Paper range | 80-2000g/㎡(cardboard) | Main motor power(KW) | 15kw |
| 0.1-2mm(cardboard) | Power rating(KW) | 65kw | |
| ≤4mm(corrugated) | Machine weight(kg) | 26000kg | |
| Max. working pressure | 350T | Overall machine dimensions(mm) | 7400*5820*2800mm |
| Max. working speed(s/h) | 6500s/h | Air requirements | 0.6Mpa, >0.37m³/min |
