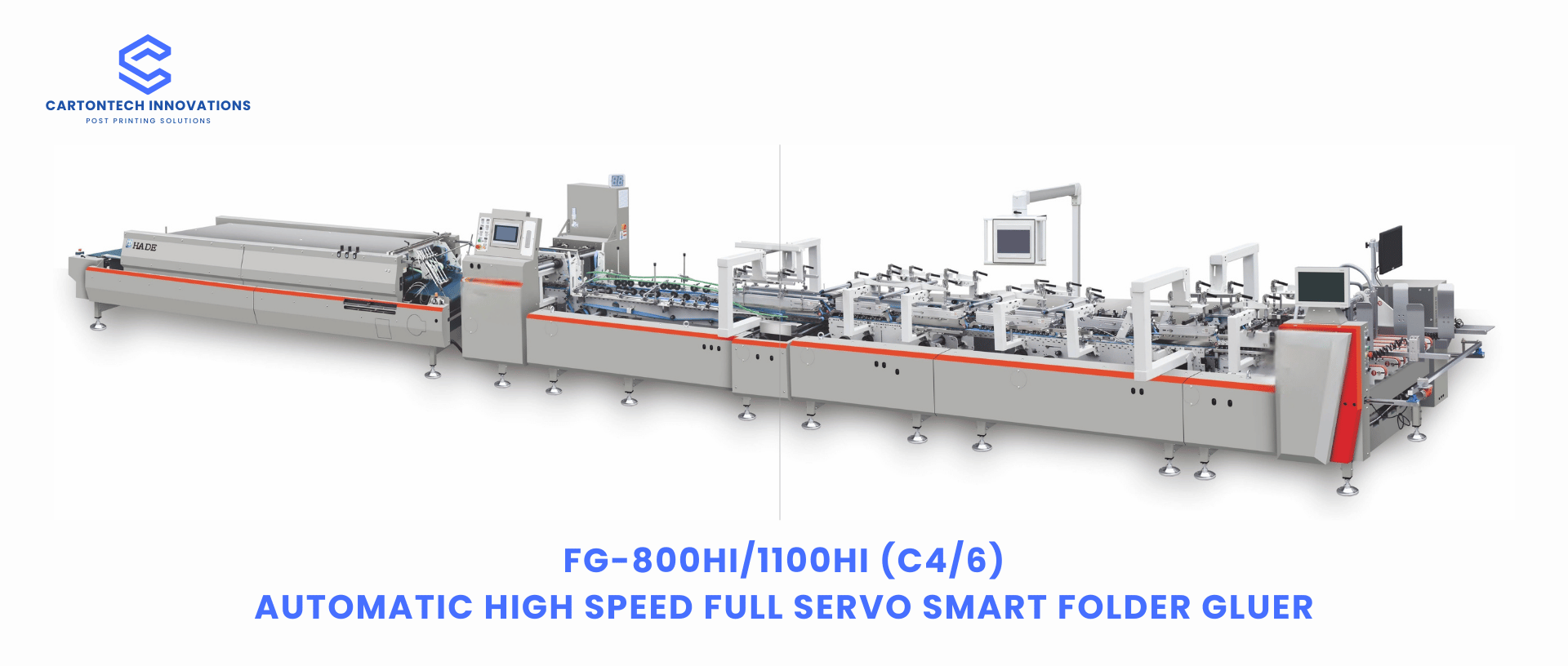

FG-800HI/1100HI (C4/6) Automatic High Speed Full Servo Smart Folder Gluer
Automatic High Speed Full Servo Smart Folder Gluer
The modular design realizes different functional configurations according to customer needs, Each group of modulesadopts servo motors, which are driven independetly and have stable,convenient, accurate and efficient performance.The transmission mode of the whole machine adopts hexagonal axis and poly V belts belts, by this way, machine is moreefficient, energy-saving and noiseless.The upper and lower dual power driving, ensures smooth paper delivery and accurate folding line, which can meet many kinds of cardboard boxes gluing requirements.
| Model | FG-800HI C4/6 | FG-1100HI C4/6 |
| Paper weight | 200-800g/m²(Cardboard)N-E-F(E/N/F flute corrugated board) | 200-800g/m²(Cardboard)N-E-F(E/N/F flute corrugated board) |
| Speed range | 0-400m/min | 0-400m/min |
| Inching speed | 30m/min | 30m/min |
| Max blank width | 800mm | 1100mm |
| Dimension (LxWxH) | 14000x2000x1900mm 16000x2000x1900mm | 14800x2300x1900mm 16500x2300x1900mm |
| Machine weight | 6.0T/6.5T | 7.0T/7.5T |
| Machine power | 22kw/23.5kw | 22kw/23.5kw |
| Compressed air | 6bar | 6bar |
| Air compressor capacity | 10m³/h | 10m³/h |
| Air tank capacity | 60L | 60L |
| FG-800HI C4/6 | FG-1100HI C4/6 | ||
| Straight line box | L | 100-800 | 100-1100 |
| W | 130-800 | 130-1100 | |
| H | 80-390 | 80-480 | |
| Lock bottom box | L | 120-800 | 120-1100 |
| W | 170-700 | 170-1000 | |
| H | 80-340 | 80-440 | |
| 3 4(optional)4-corner boxes | L | 150-800 | 150-800 |
| W | 150-700 | 150-1000 | |
| H | 20-150 | 20-150 | |
| 4 6(optional)6-corner boxes | L | 130-800 | 130-1000 |
| W | 240-700 | 240-1000 | |
| H | 25-150 | 25-150 | |
| 5 CD(optional)CD boxes | L | 130-600 | 130-600 |
| W | 100-500 | 100-500 | |
| H | 12-3O | 12-3O |
